Ideal Diverter Valve Kit 174813
Ideal

Ideal Diverter Valve Kit 174813

Add Your Review
  • Aspares APPROVED
  • Free DELIVERY
  • 1 Year WARRANTY
  • Same Day DISPATCH
  • Product SKU: A00764_01
  • Order within
Available:In Stock (Next Day Delivery Available)
£16.63 (inc £19.95)
Wishlist Compare

Ideal Diverter Valve Kit (174813)

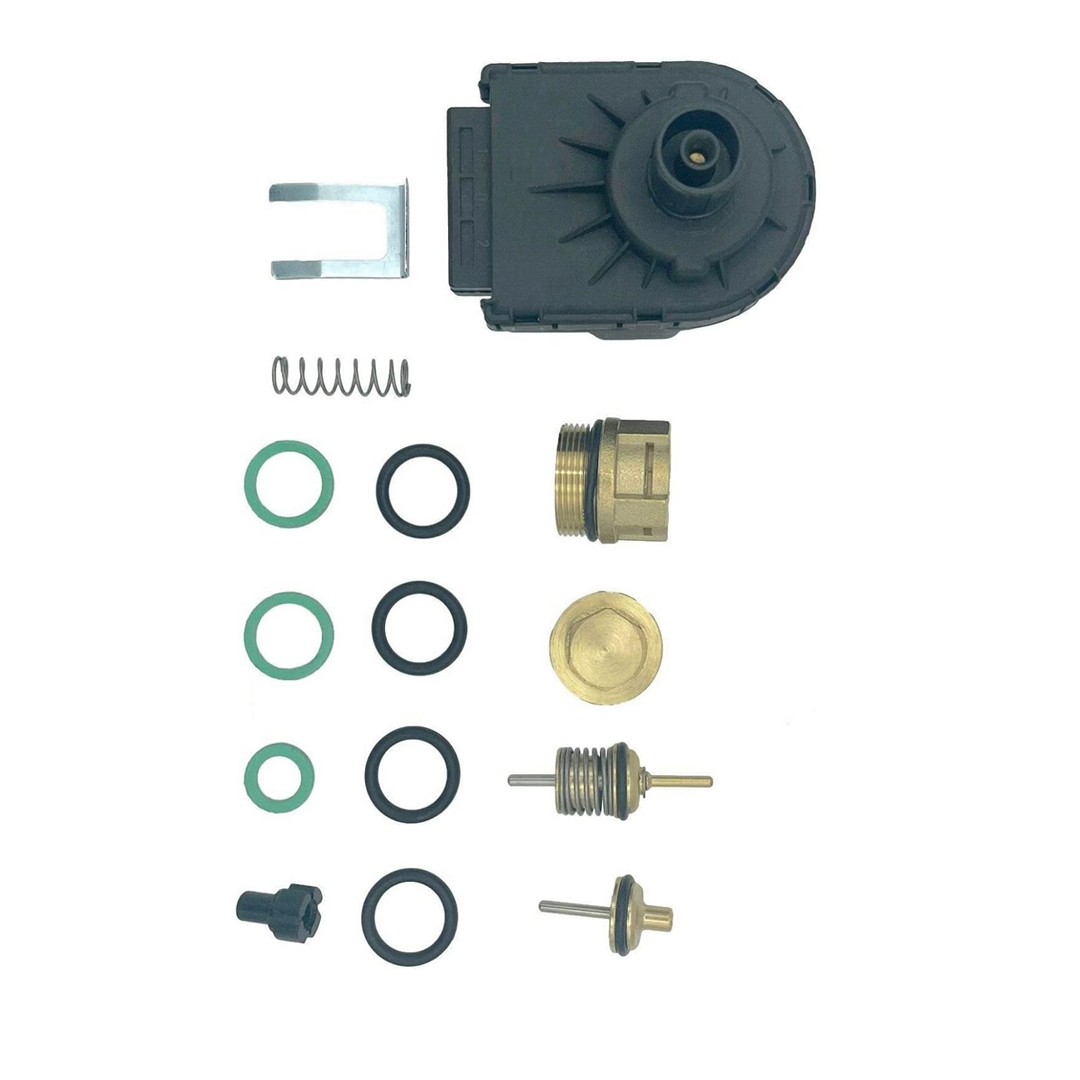

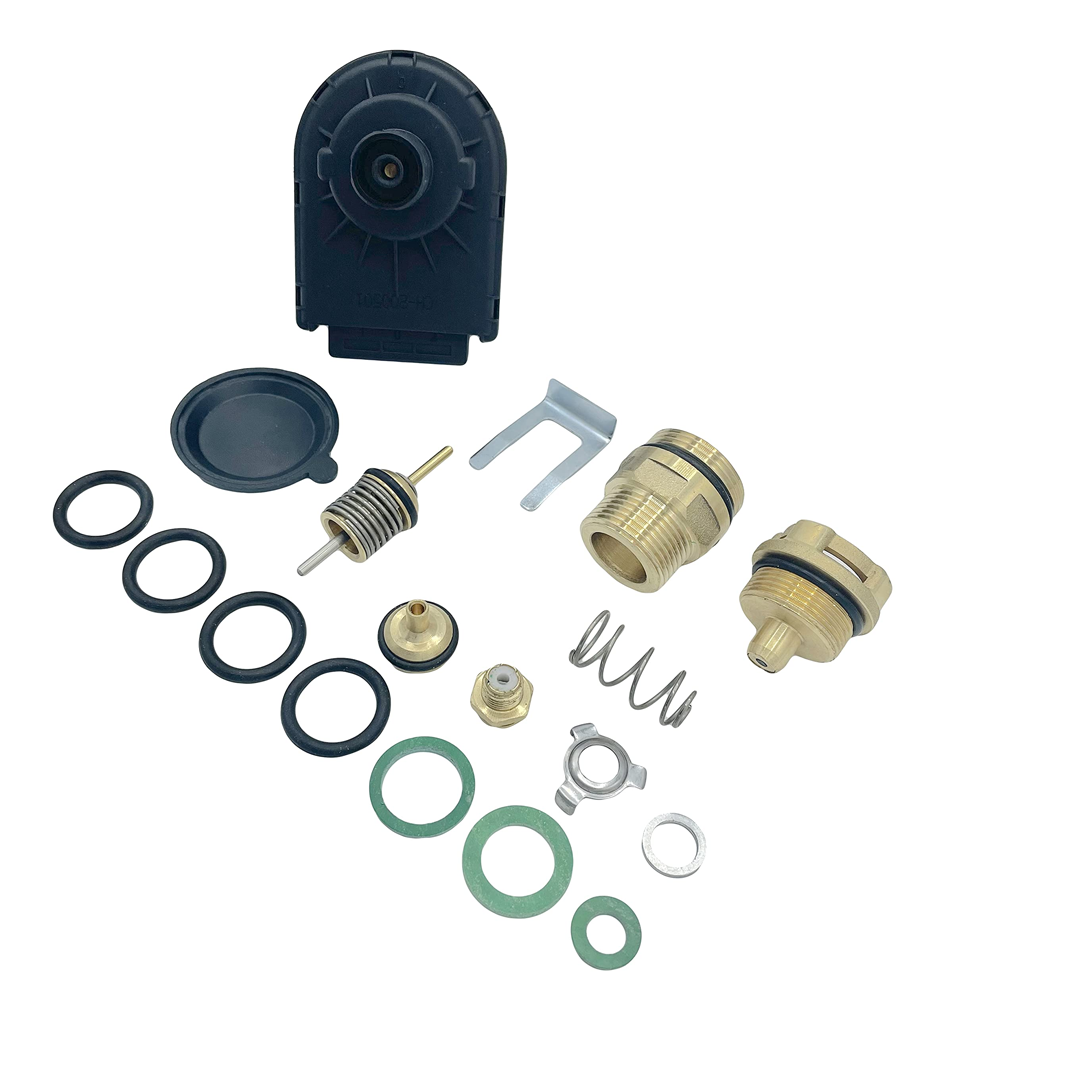

The Ideal Diverter Valve Kit (Part No: 174813) is a comprehensive mechanical restoration kit designed for the brass and polymer hydraulic distribution blocks utilized across Ideal’s flagship high-efficiency condensing combination boilers. This service kit features the primary internal spring-loaded cartridge mechanism, reinforced central control rod, dynamic shuttle plates, and a complete layout of precise high-tolerance sealing gaskets. By swapping out these high-wear internal components, the kit re-establishes seamless physical tracking within the hydro-block, letting the boiler cleanly lock down or open water channels to separate the space heating circuit from the domestic hot water secondary plate heat exchanger.

  • Cross-Circuit Flow Rectification: Repairs the prominent system fault where central heating water drifts into the radiators during summer hot water tap operations, locking the energy focus exclusively onto domestic demands.

  • Scale-Resistant Internals: Built with advanced low-friction guide stems engineered to counter the sticky accumulation of hard water limescale and floating black iron oxide sludge.

  • Hermetic Zone Sealing: Outfitted with robust, industrial-grade rubber O-rings designed to maintain tight structural isolation during high-temperature thermal spiking and structural system pressure shifts.

  • Cost-Efficient Overhaul: Provides a targeted mechanical rebuild that addresses the core points of physical wear, removing the logistical necessity and higher cost of replacing the entire molded hydraulic block.

Compatible Models:

  • Ideal Esprit 2 24 — 47-348-71

  • Ideal Esprit 2 30 — 47-348-72

  • Ideal Esprit 2 35 — 47-348-73

  • Ideal HE 24 — 47-348-46

  • Ideal HE 30 — 47-348-47

  • Ideal HE 35 — 47-348-48

  • Ideal I Mini 24 — 47-348-77

  • Ideal I Mini 30 — 47-348-78

  • Ideal Code Combi ES 38 — 47-348-85

  • Ideal Combi ES 35 — 47-348-86

  • Ideal Logic + Combi 30 — 47-348-87

  • Ideal Independent C24 — 47-348-68

  • Ideal Independent C30 — 47-348-69

  • Ideal Independent C35 — 47-348-70

  • Ideal Isar HE24 — 47-348-31

  • Ideal Isar HE30 — 47-348-30

  • Ideal Isar HE35 — 47-348-29

  • Ideal Code Combi ES 26 — 47-349-04

  • Ideal Code Combi ES 33 — 47-349-05

  • Ideal Code Combi ES 38 — 47-349-06

  • Ideal Combi E 24 — 47-348-88

  • Ideal Combi E 30 — 47-348-89

  • Ideal Combi E 35 — 47-348-90

  • Ideal Combi ES 24 — 47-349-01

  • Ideal Combi ES 30 — 47-349-02

  • Ideal Combi ES 35 — 47-349-03

  • Ideal Combi ESP24 — 47-349-12

  • Ideal Combi ESP30 — 47-349-13

  • Ideal Combi ESP35 — 47-349-14

  • Ideal Logic + Combi 24 — 47-348-65

  • Ideal Logic + Combi 30 — 47-348-66

  • Ideal Logic + Combi 35 — 47-348-67

  • Ideal Logic Code Combi 26 — 47-348-74

  • Ideal Logic Code Combi 33 — 47-348-75

  • Ideal Logic Code Combi 38 — 47-348-76

  • Ideal Logic Combi 24 — 47-348-56

  • Ideal Logic Combi 30 — 47-348-57

  • Ideal Logic Combi 35 — 47-348-58

  • Ideal C26 Combi — 47-348-99

  • Ideal C32 Combi — 47-348-98

  • Ideal C40 Combi — 47-348-97

  • Ideal Ultra Combi 30 — 47-002-01

  • Ideal Ultra Combi 35 — 47-002-02

  • Ideal Keston Keston Combi 30 — 47-930-04

  • Ideal Keston Keston Combi 35 — 47-930-05
