Baxi Diverter Valve

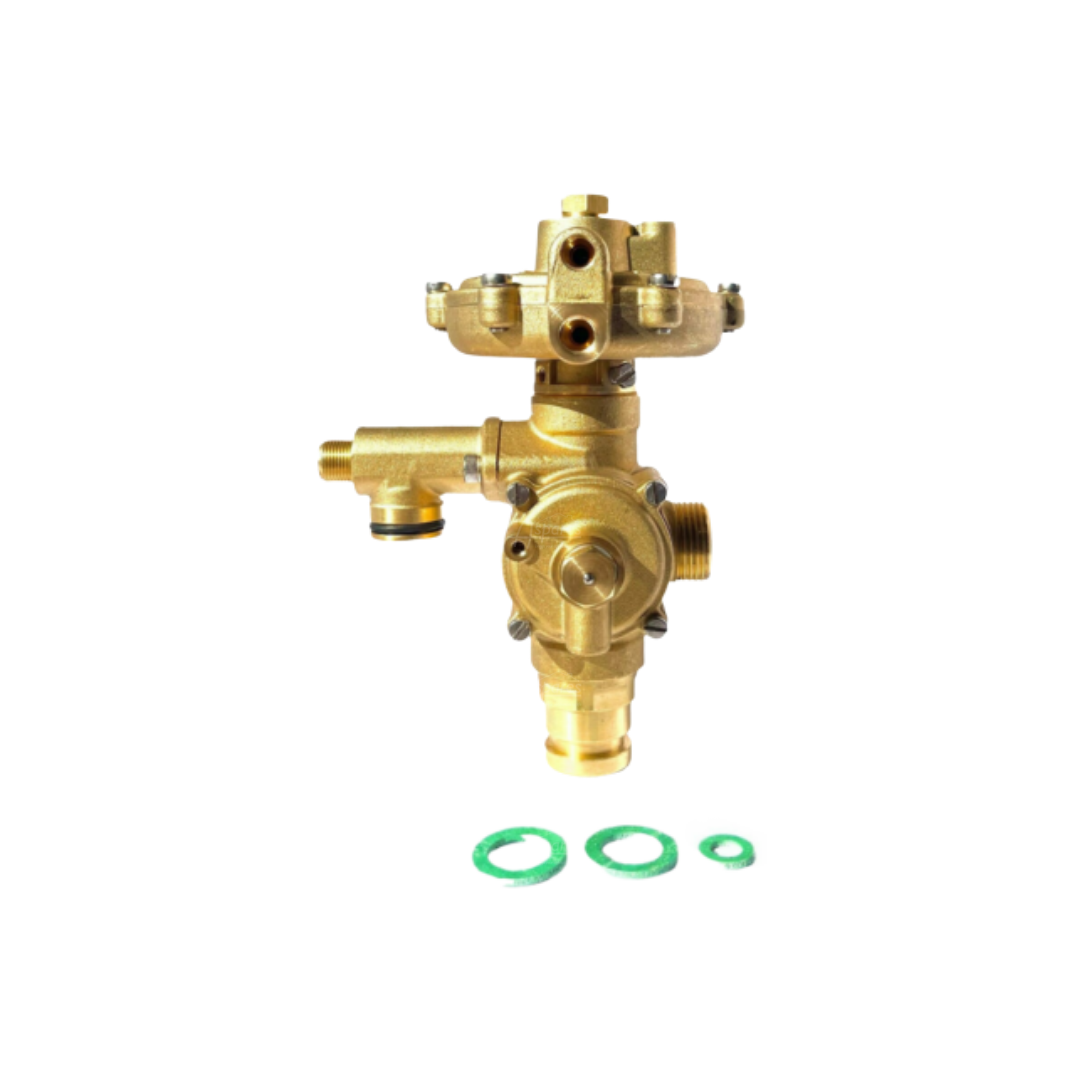

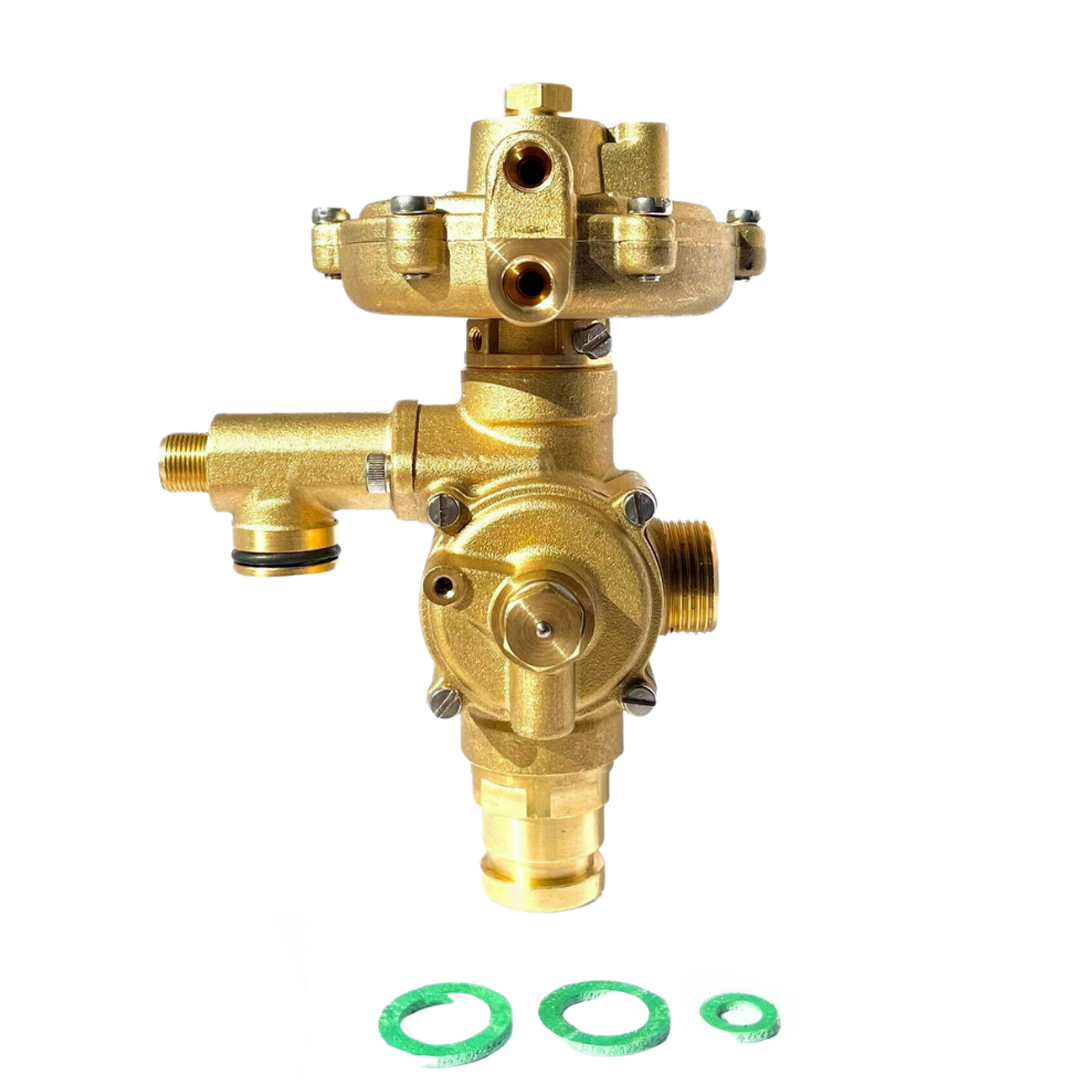

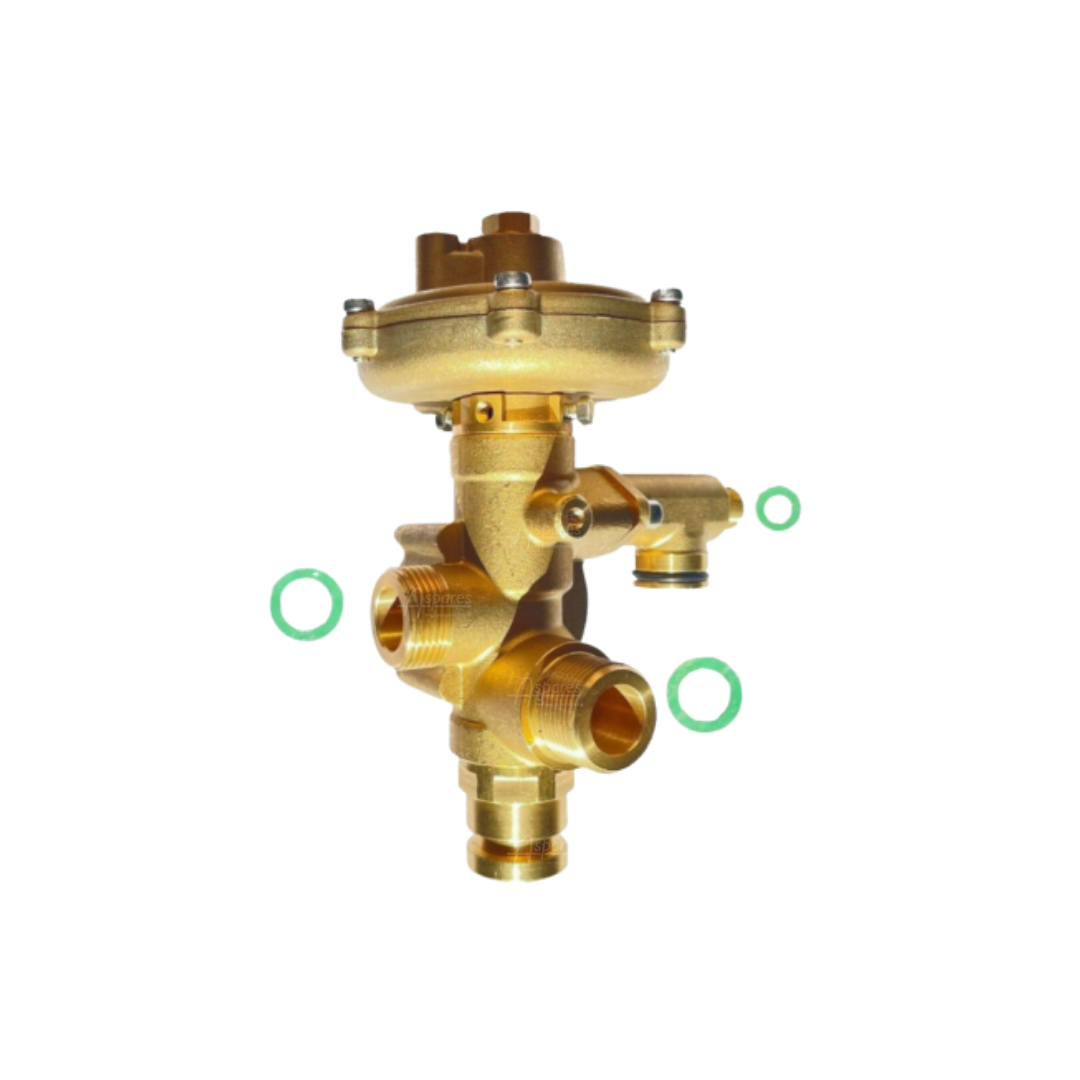

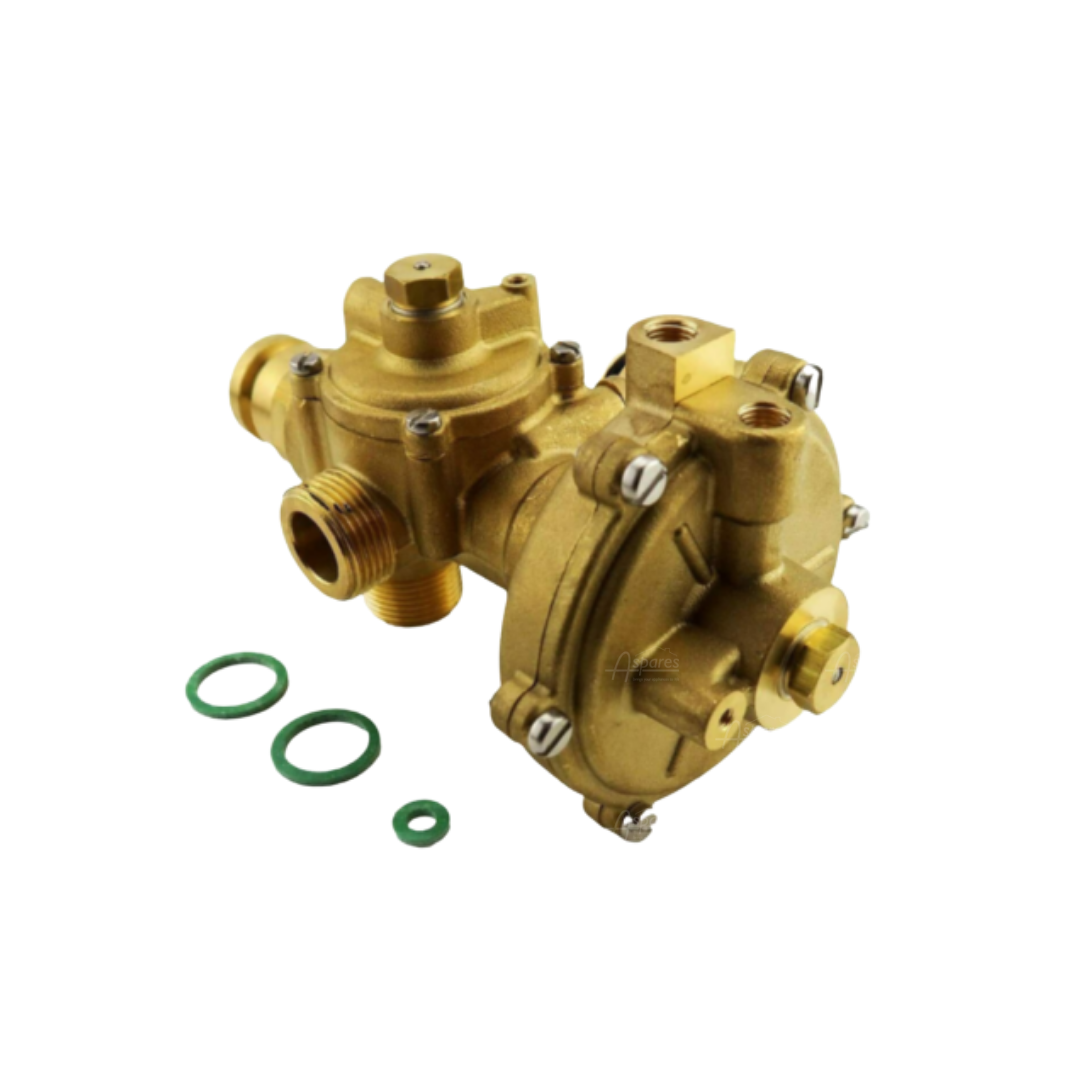

Baxi Diverter Valve (248061 | 7224344) The Baxi Diverter Valve (Part Nos: 248061 or 7224344) is a core hydraulic control component used in classic Baxi Combi boiler models. Acting as a mechanical and hydraulic switchboard, this brass-bodied valve changes the path of the primary heated water depending on system demand. When a hot water tap is turned on, the internal differential pressure mechanism moves to isolate the central heating circuit, directing 100% of the boiler's thermal output into the plate heat exchanger to deliver instant domestic hot water. Complete Hydraulic Assembly: Replacing the full valve assembly addresses housing wear, internal spindle sticking, and mineral buildup that cannot be solved by a repair kit alone. Heavy-Duty Brass Construction: Manufactured from robust, cast brass to withstand extreme system pressures, thermal expansions, and long-term chemical exposure. Eliminates Circuit Crossover: Features high-tolerance internal seating that prevents hot water from leaking into the radiator circuit when the boiler is running in hot water mode. OEM Standards: Precision machined to match the original layout of the Baxi mechanical block, ensuring exact connection alignments with existing copper pipework. Compatible Models: Baxi Combi 80 Eco — 47-075-05 Baxi Combi 80E — 47-075-06 Baxi Combi 80 Maxflue — 47-075-07 Baxi Combi 105E — 47-075-08 Baxi Combi 105HE — 47-075-18 BAXI COMBI 80 ECO BAXI COMBI 80E BAXI COMBI 80 MAXFLUE BAXI COMBI 105E BAXI COMBI 105HE ALPHA 240 ALPHA 240 ECO ALPHA 240E ALPHA 240P ALPHA 240X ALPHA 240XE ALPHA 240XP ALPHA 280E ALPHA 280P Main Combi 24 — 47-474-01 Main Combi 24 HE — 47-474-02 Main Combi 30HE — 47-474-03 MAIN COMBI 24 MAIN COMBI 24HE MAIN COMBI 30HE Potterton Performa 24 — 47-393-06 Potterton Performa 24 Eco HE — 47-393-11 Potterton Performa 28 — 47-393-07 Potterton Performa 30 HE — 47-393-13 POTTERTON PERFORMA 24 POTTERTON PERFORMA 24 ECO HE POTTERTON PERFORMA 28 POTTERTON PERFORMA 30 HE Baxi A00298 248061 7224344
