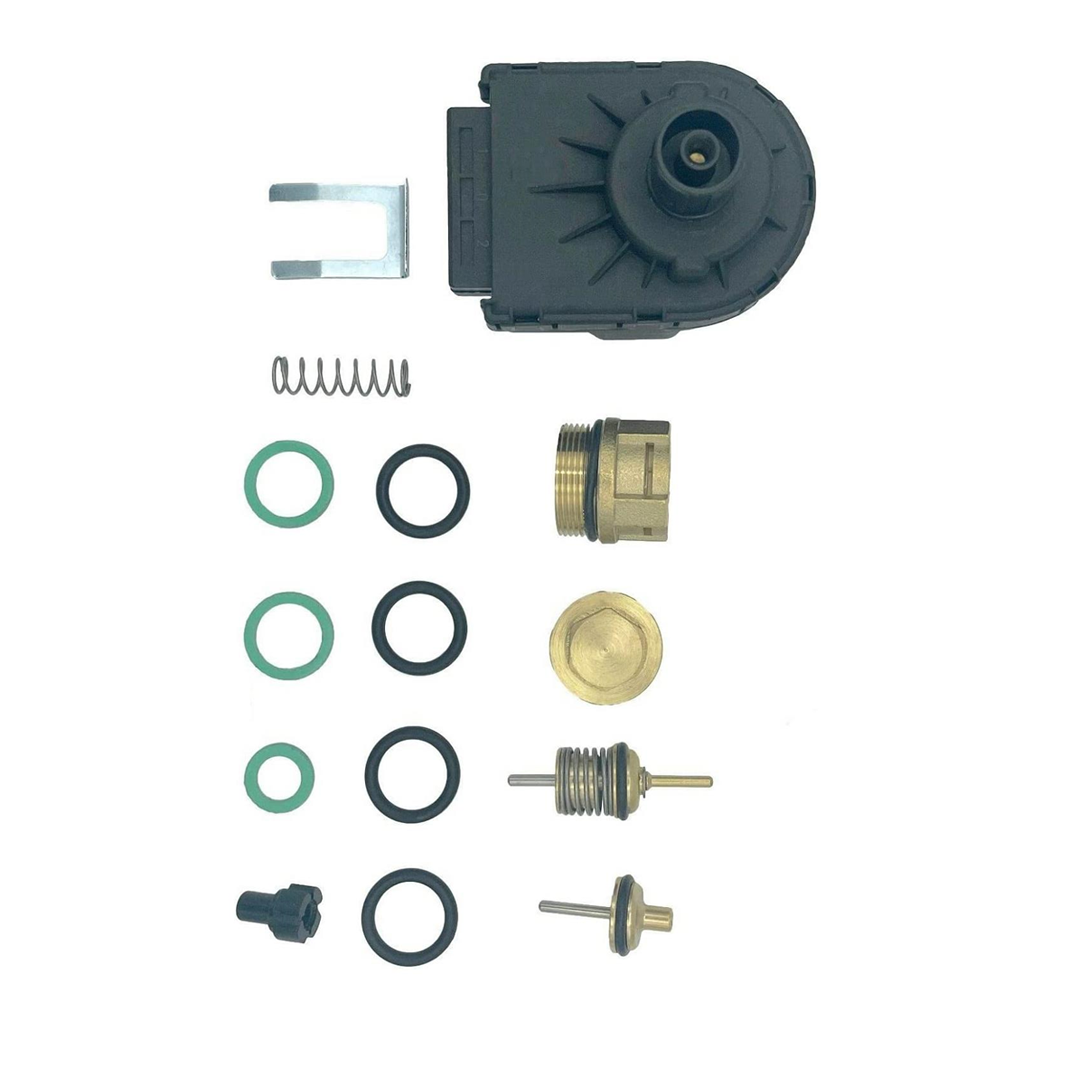

Ideal Diverter Valve Kit 174813

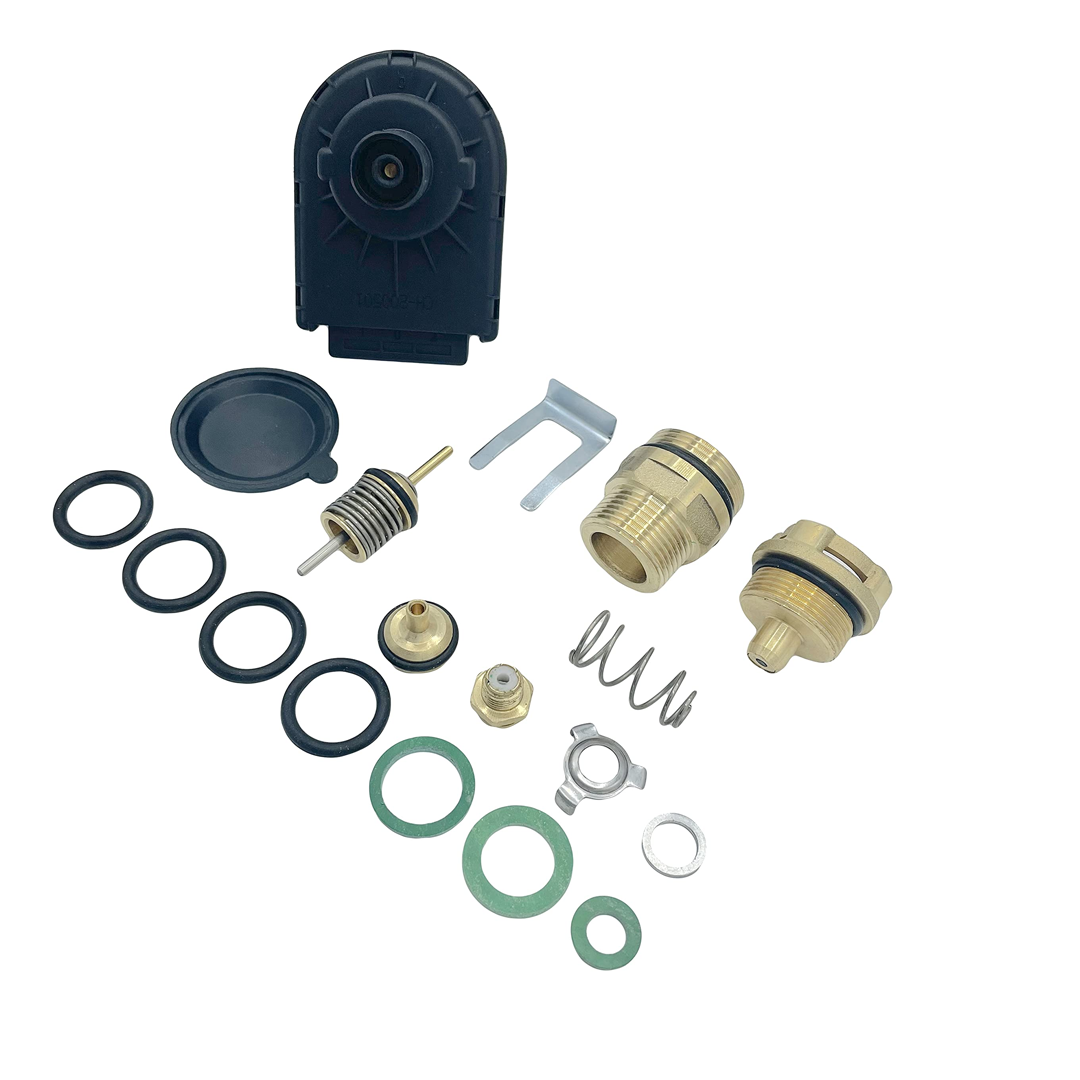

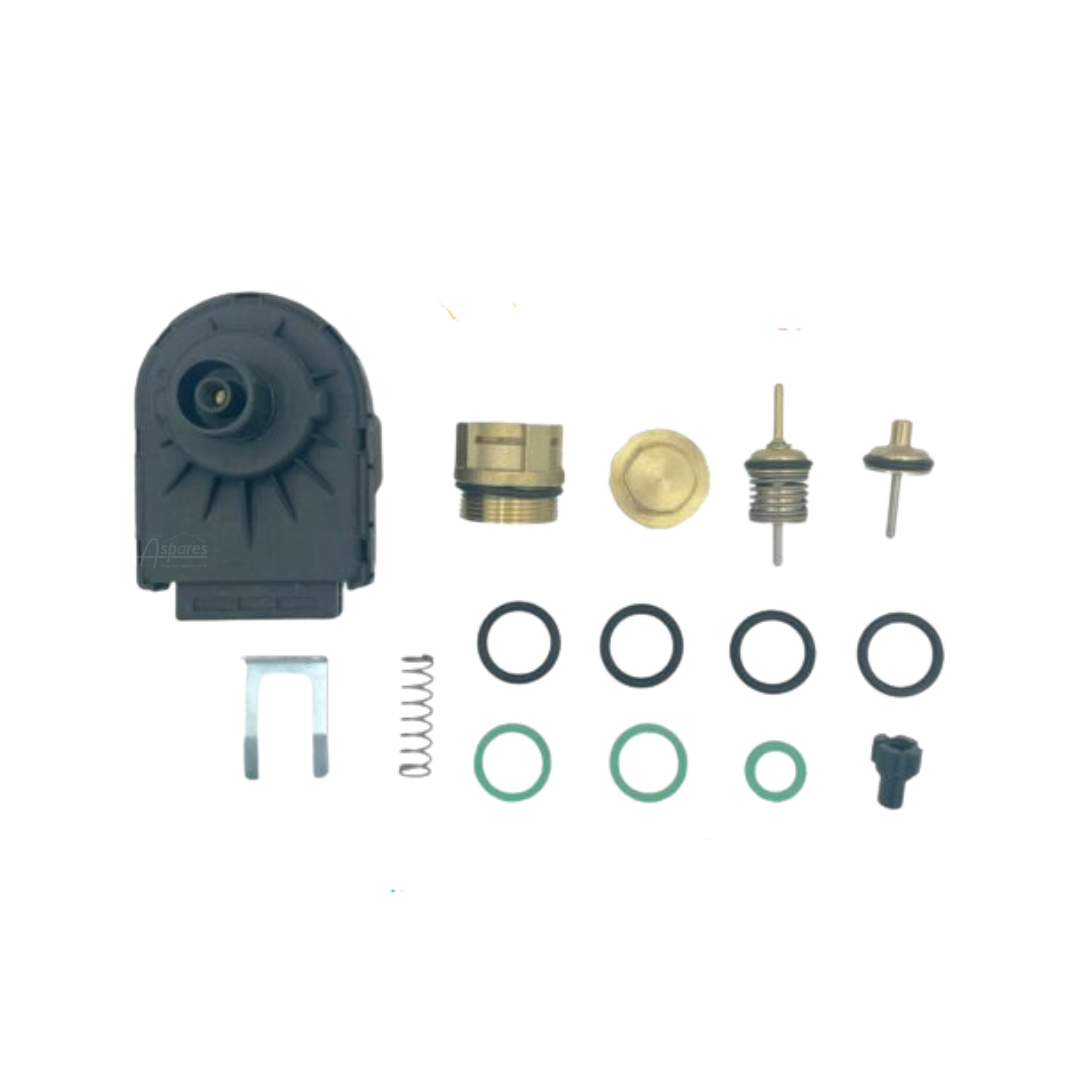

Ideal Diverter Valve Kit (174813) The Ideal Diverter Valve Kit (Part No: 174813) is a comprehensive mechanical restoration kit designed for the brass and polymer hydraulic distribution blocks utilized across Ideal’s flagship high-efficiency condensing combination boilers. This service kit features the primary internal spring-loaded cartridge mechanism, reinforced central control rod, dynamic shuttle plates, and a complete layout of precise high-tolerance sealing gaskets. By swapping out these high-wear internal components, the kit re-establishes seamless physical tracking within the hydro-block, letting the boiler cleanly lock down or open water channels to separate the space heating circuit from the domestic hot water secondary plate heat exchanger. Cross-Circuit Flow Rectification: Repairs the prominent system fault where central heating water drifts into the radiators during summer hot water tap operations, locking the energy focus exclusively onto domestic demands. Scale-Resistant Internals: Built with advanced low-friction guide stems engineered to counter the sticky accumulation of hard water limescale and floating black iron oxide sludge. Hermetic Zone Sealing: Outfitted with robust, industrial-grade rubber O-rings designed to maintain tight structural isolation during high-temperature thermal spiking and structural system pressure shifts. Cost-Efficient Overhaul: Provides a targeted mechanical rebuild that addresses the core points of physical wear, removing the logistical necessity and higher cost of replacing the entire molded hydraulic block. Compatible Models: Ideal Esprit 2 24 — 47-348-71 Ideal Esprit 2 30 — 47-348-72 Ideal Esprit 2 35 — 47-348-73 Ideal HE 24 — 47-348-46 Ideal HE 30 — 47-348-47 Ideal HE 35 — 47-348-48 Ideal I Mini 24 — 47-348-77 Ideal I Mini 30 — 47-348-78 Ideal Code Combi ES 38 — 47-348-85 Ideal Combi ES 35 — 47-348-86 Ideal Logic + Combi 30 — 47-348-87 Ideal Independent C24 — 47-348-68 Ideal Independent C30 — 47-348-69 Ideal Independent C35 — 47-348-70 Ideal Isar HE24 — 47-348-31 Ideal Isar HE30 — 47-348-30 Ideal Isar HE35 — 47-348-29 Ideal Code Combi ES 26 — 47-349-04 Ideal Code Combi ES 33 — 47-349-05 Ideal Code Combi ES 38 — 47-349-06 Ideal Combi E 24 — 47-348-88 Ideal Combi E 30 — 47-348-89 Ideal Combi E 35 — 47-348-90 Ideal Combi ES 24 — 47-349-01 Ideal Combi ES 30 — 47-349-02 Ideal Combi ES 35 — 47-349-03 Ideal Combi ESP24 — 47-349-12 Ideal Combi ESP30 — 47-349-13 Ideal Combi ESP35 — 47-349-14 Ideal Logic + Combi 24 — 47-348-65 Ideal Logic + Combi 30 — 47-348-66 Ideal Logic + Combi 35 — 47-348-67 Ideal Logic Code Combi 26 — 47-348-74 Ideal Logic Code Combi 33 — 47-348-75 Ideal Logic Code Combi 38 — 47-348-76 Ideal Logic Combi 24 — 47-348-56 Ideal Logic Combi 30 — 47-348-57 Ideal Logic Combi 35 — 47-348-58 Ideal C26 Combi — 47-348-99 Ideal C32 Combi — 47-348-98 Ideal C40 Combi — 47-348-97 Ideal Ultra Combi 30 — 47-002-01 Ideal Ultra Combi 35 — 47-002-02 Ideal Keston Keston Combi 30 — 47-930-04 Ideal Keston Keston Combi 35 — 47-930-05 Ideal A00764_01
