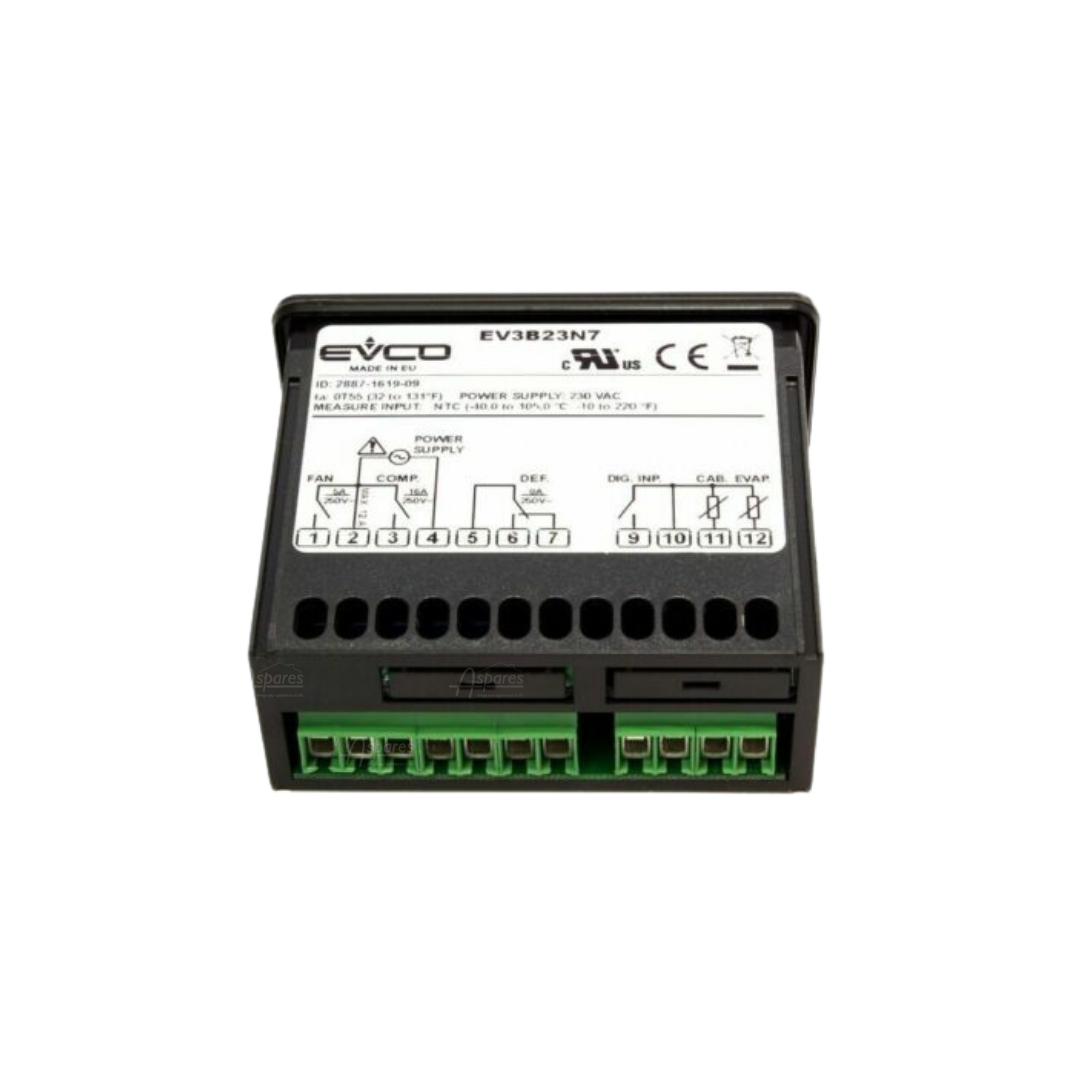

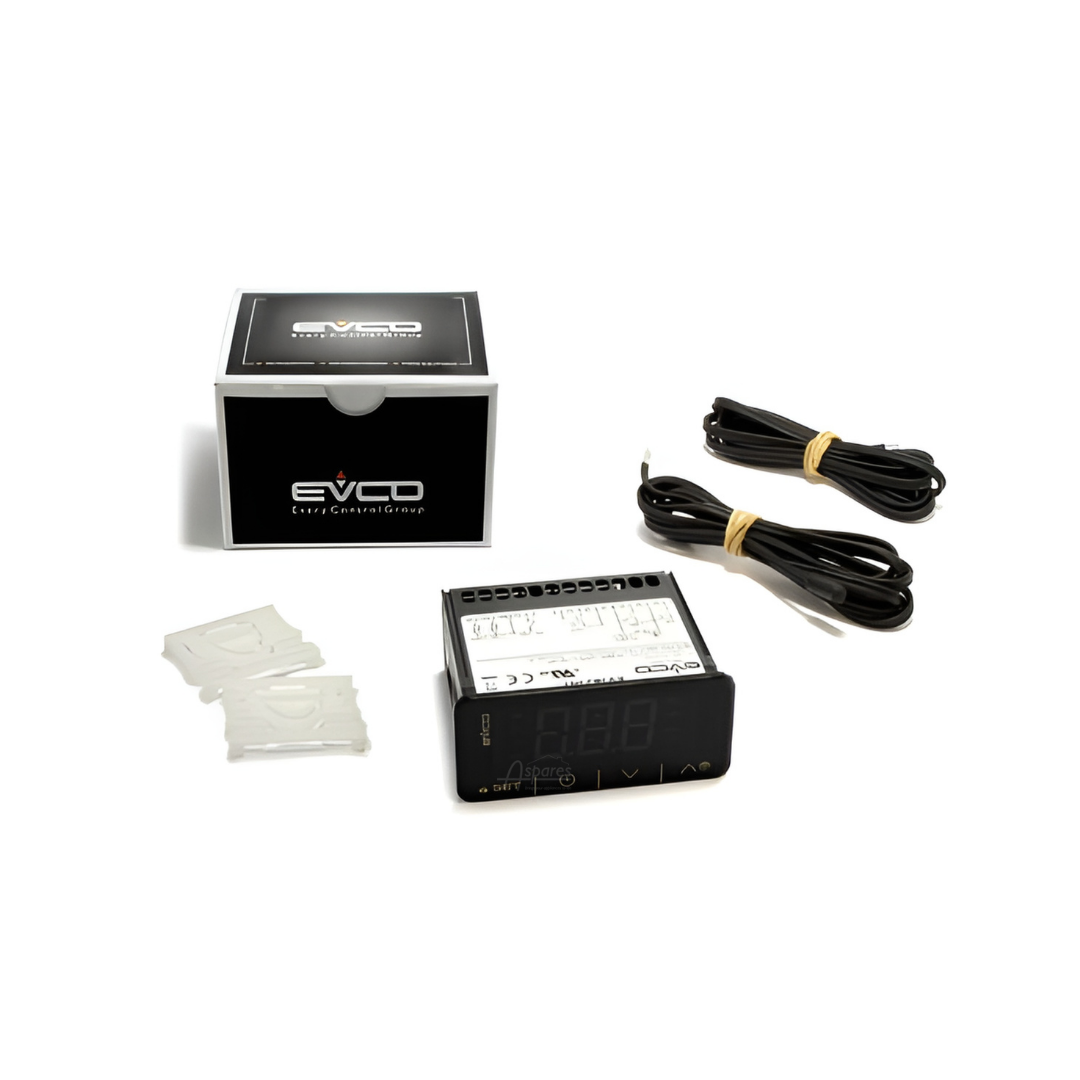

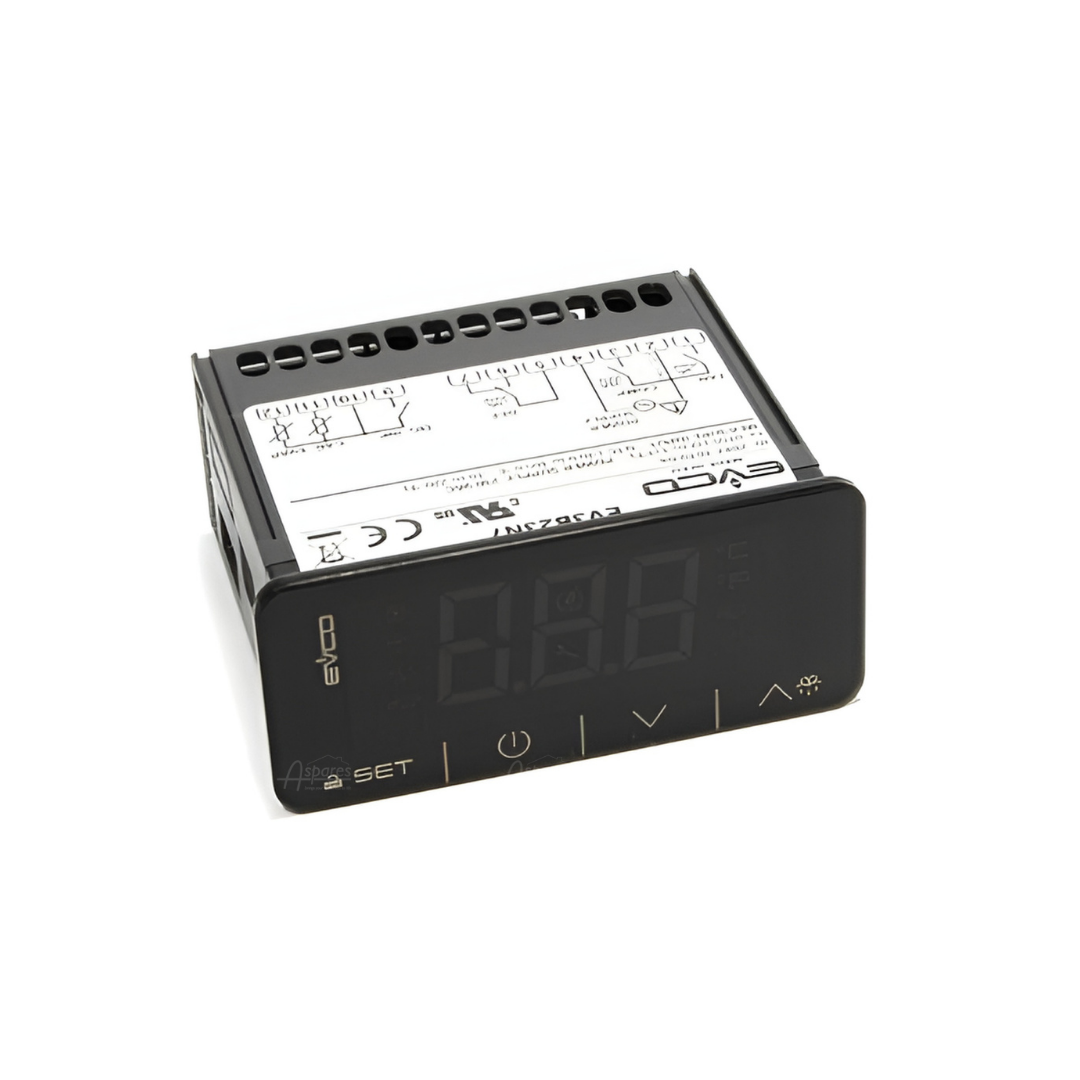

Evco Digital Freezer Control Thermostat 230V I EV3B23N7

Evco Digital Freezer Control Thermostat 230V I EV3B23N7

  • Genuine Product
  • Free DELIVERY
  • Same Day DISPATCH
  • Product SKU: G01209-01
  • Order within
Available:In Stock (Next Day Delivery Available)
£80.90
Wishlist Compare
Box: self-extinguishing grey.
Frontal protection: IP 65. Connections fuse copper conductors only): screw terminal blocks (power supply, input and output).
Working temperature: from 0 to 55 °C (32 to 131 °F, 10 ... 90% of relative humidity without condensate).
Power supply: 230 VAC, 50/60 Hz, 3 VA (approximate); 115 VAC by request.
Insulation class: 2. Measure inputs: 1 (room probe) for PTC/NTC probes.
Working range: from -50.0 to 150.0 °C (-50 to 300 °F) for PTC probe, from -40.0 to 105.0 °C (-40 to 220 °F) for NTC probe.
Resolution: 0.1 °C/1 °C/1
Digital outputs: 1 relay: ■ load relay: 16 res. A 0 250 VAC (change-over contact); 5 RA, 30 LRA.
The maximum current allowed on the load Is 10 A.
Box: self-extinguishing grey. Frontal protection: IP 65. Connections fuse copper conductors only): screw terminal blocks (power supply, input and output). Working temperature: from 0 to 55 °C (32 to 131 °F, 10 ... 90% of relative humidity without condensate). Power supply: 230 VAC, 50/60 Hz, 3 VA (approximate); 115 VAC by request. Insulation class: 2. Measure inputs: 1 (room probe) for PTC/NTC probes. Working range: from -50.0 to 150.0 °C (-50 to 300 °F) for PTC probe, from -40.0 to 105.0 °C (-40 to 220 °F) for NTC probe. Resolution: 0.1 °C/1 °C/1 Digital outputs: 1 relay: ■ load relay: 16 res. A 0 250 VAC (change-over contact); 5 RA, 30 LRA. The maximum current allowed on the load Is 10 A.
