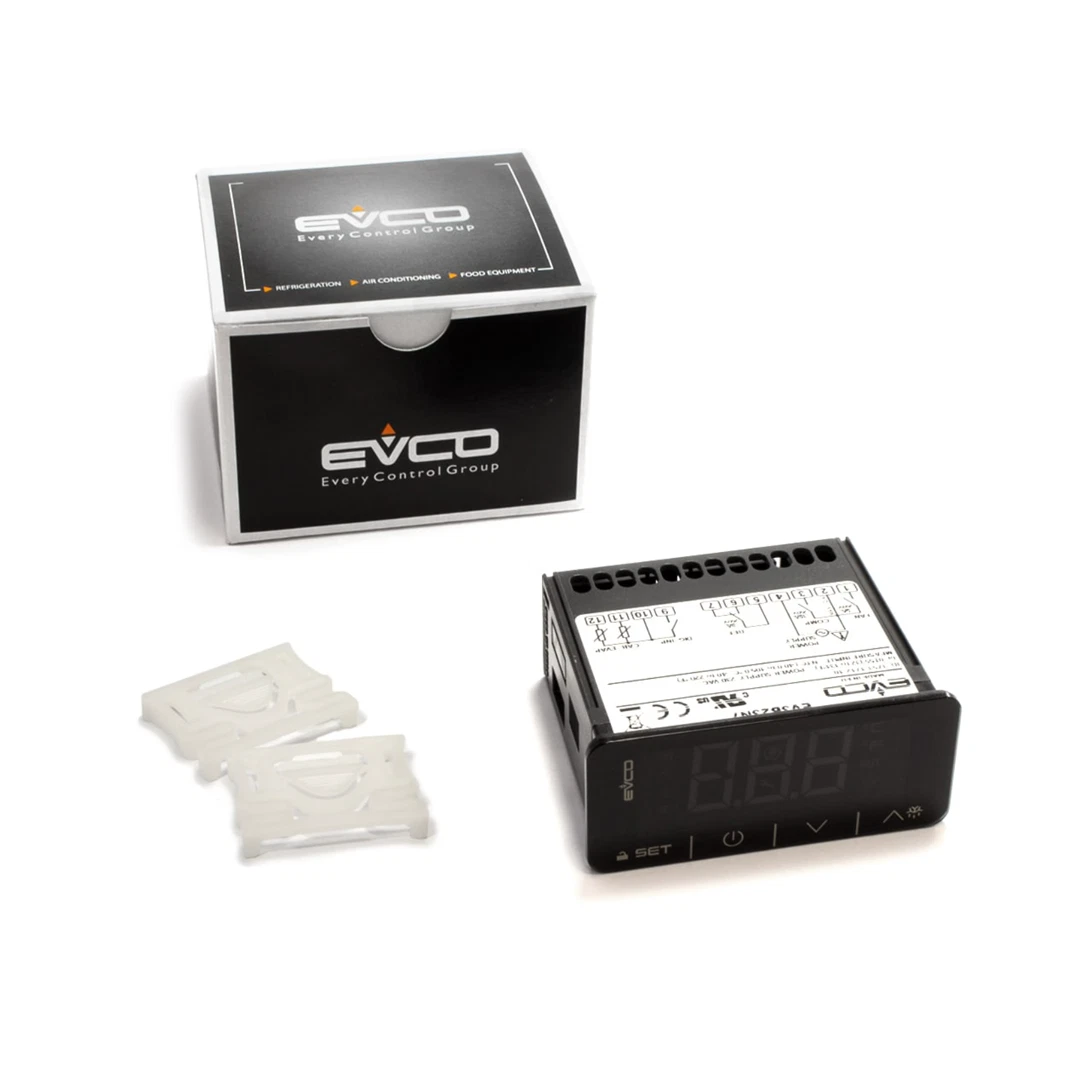

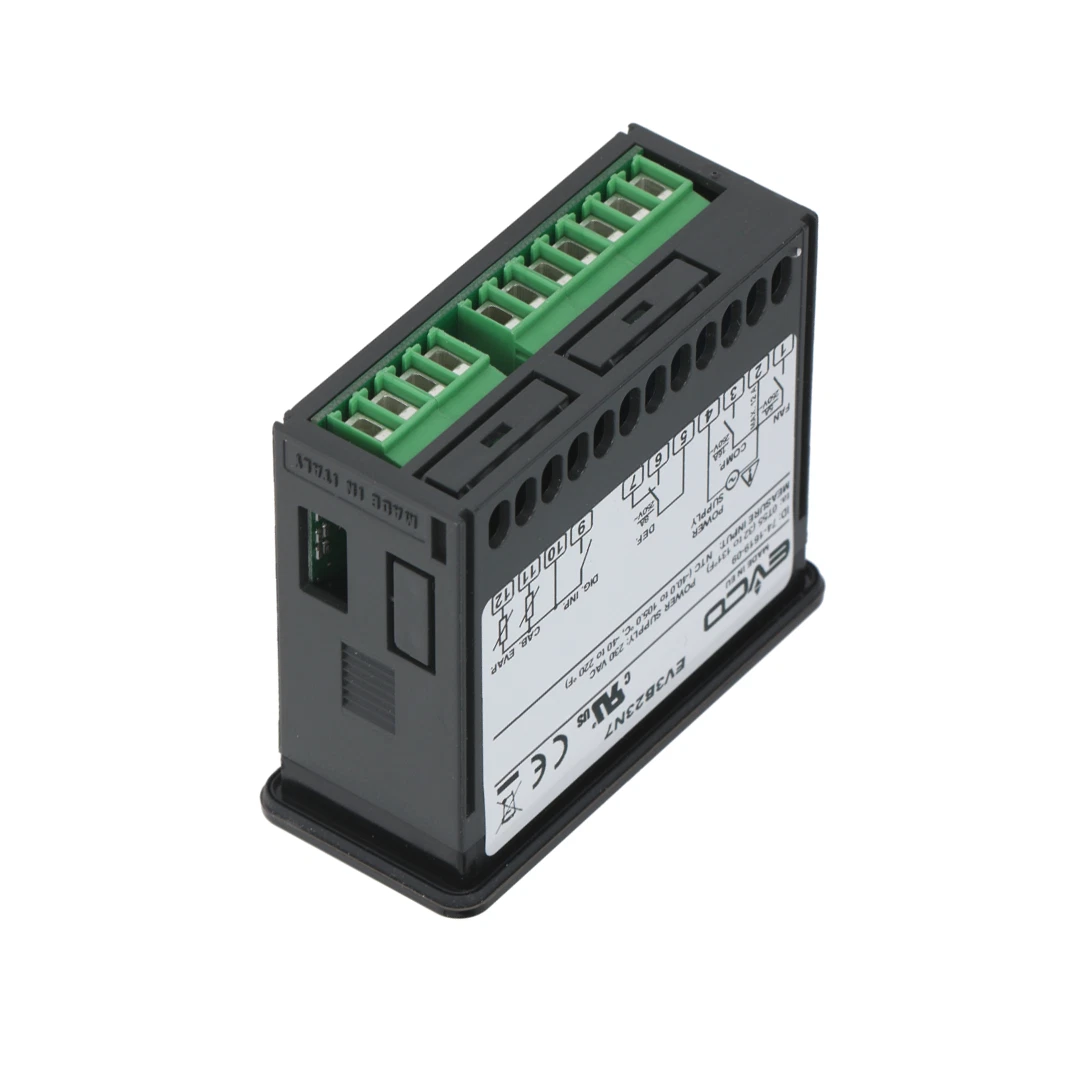

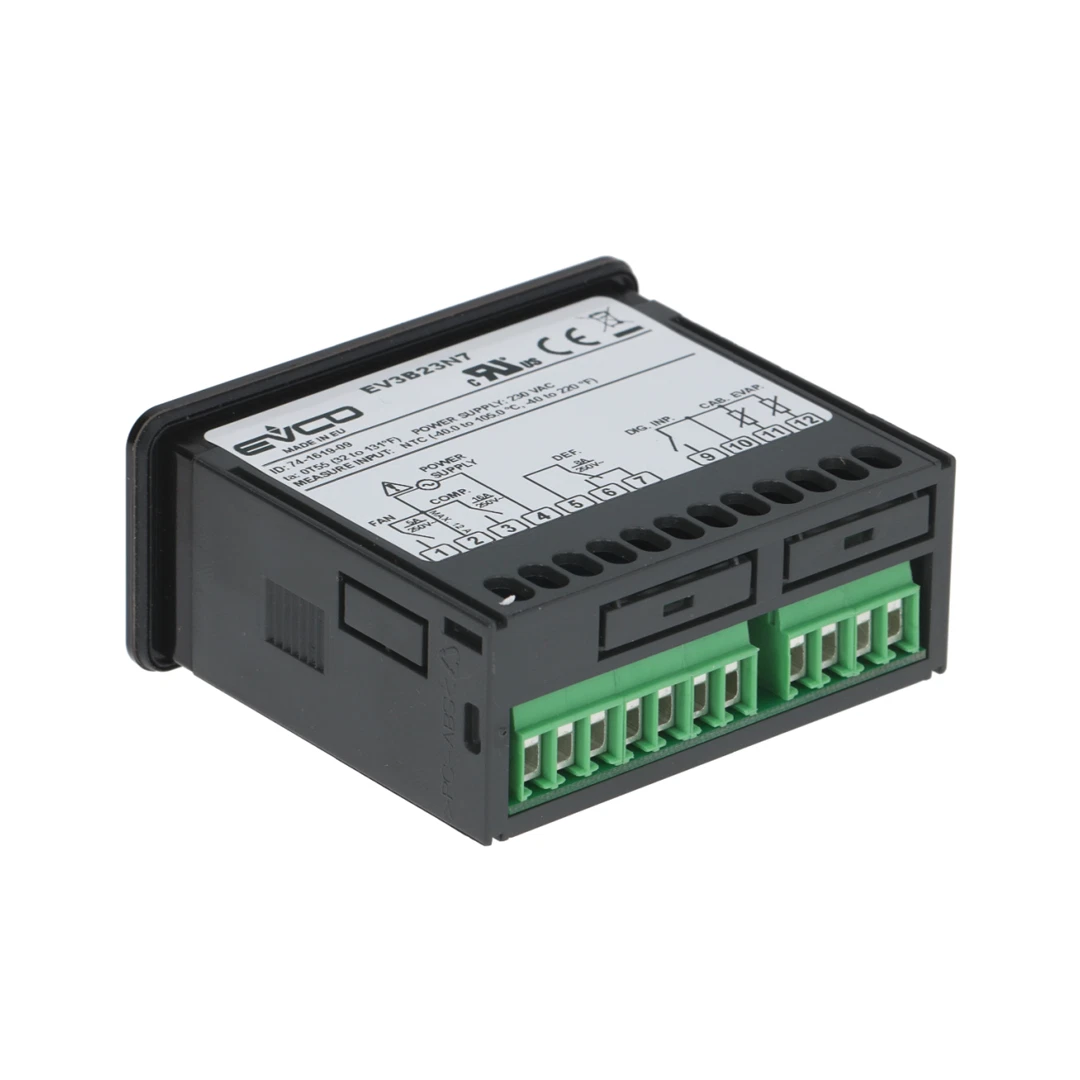

Evco Digital Thermostat 230V EV3B23N7

Box: self-extinguishing grey.  Frontal protection: IP 65. Connections fuse copper conductors only): screw terminal blocks (power supply, input and output).  Working temperature: from 0 to 55 °C (32 to 131 °F, 10 ... 90% of relative humidity without condensate).  Power supply: 230 VAC, 50/60 Hz, 3 VA (approximate); 115 VAC by request.  Insulation class: 2. Measure inputs: 1 (room probe) for PTC/NTC probes.  Working range: from -50.0 to 150.0 °C (-50 to 300 °F) for PTC probe, from -40.0 to 105.0 °C (-40 to 220 °F) for NTC probe.  Resolution: 0.1 °C/1 °C/1  Digital outputs: 1 relay: ■ load relay: 16 res. A 0 250 VAC (change-over contact); 5 RA, 30 LRA.  The maximum current allowed on the load Is 10 A.  Evco G01209 EV3B23N7 5056804814164 Yes - Genuine Part
